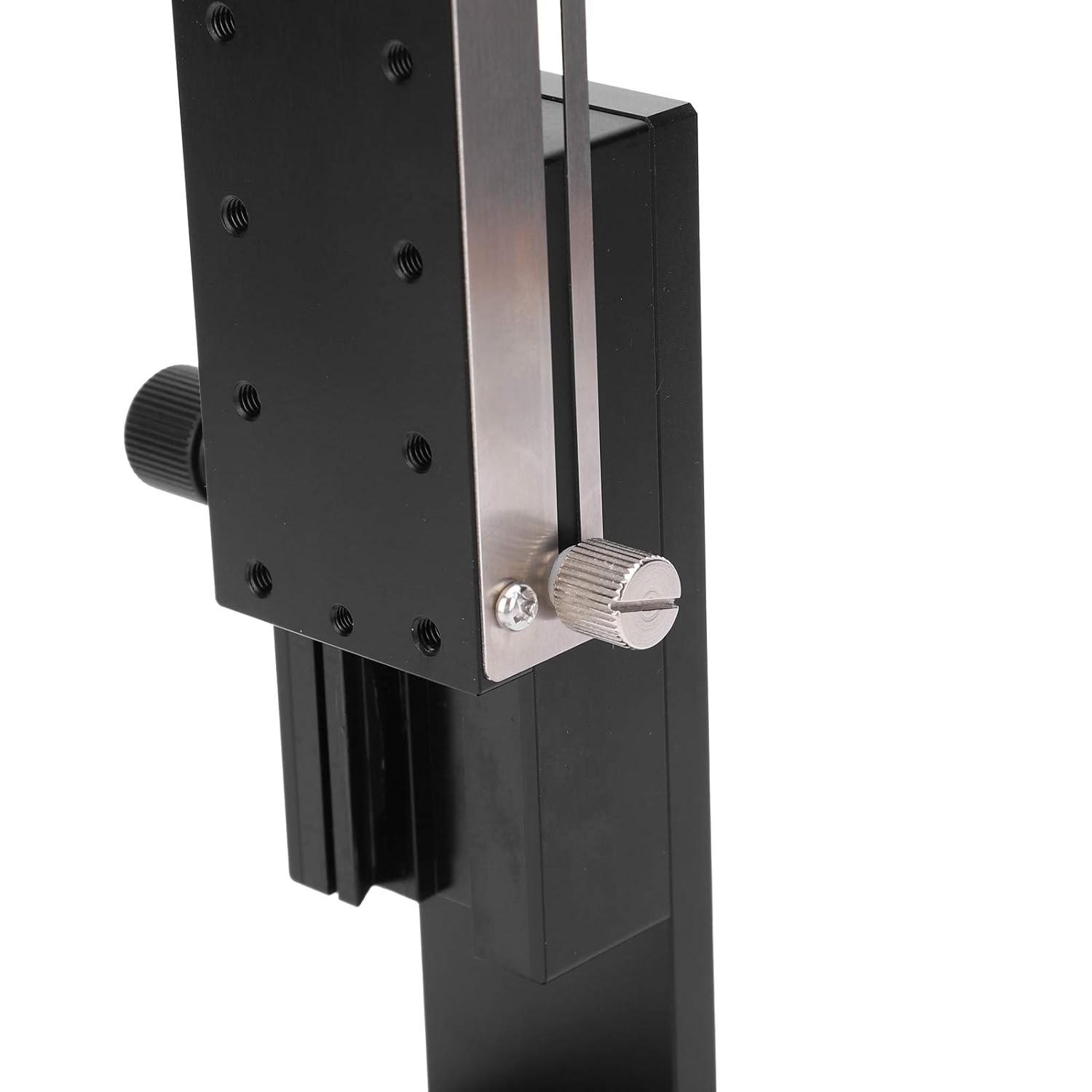

XZ Axis Manual Trimming Platform | 40x90mm Dovetail Sliding Stage with Fine - Tune Gear | 49N High Load for Microscopes/Optical Instruments/Measuring Devices

Item Type: XZ Axis Manual Trimming PlatformBody Material: Aluminium Alloy(Black Anodized)Model: HBLX-A90Platform Size: Approx. 40 x 90mm / 1.6 x 3.5inMovement Direction: XZ axis 2 DirectionsMovement: Manually rotate the knob to advance the gear drive (gear + rack)Sliding Track: Gear GuideGuide Rail Type: Dovetail GrooveNumber of Countertop Threaded Holes: 10PcsThreaded Hole Diameter: Approx. 4mm / 0.16inThreaded Hole Depth: Approx. 6mm / 0.24inLoad Capacity: 49N (5Kgf)Moving Stroke: ± Approx. 40mm / 1.6inMinimum Scale: 0.01mmParallelism: 0.1mmParallelism of Movement: 0.08mm/60mmStructure: DetachableApplication: Suitable for Optical Instruments, Measuring Devices, Semiconductor Manufacturing Equipment, Testing Machines, Microscopes, Photographic Equipment, Handling Machines, Processing Machines, Printing Machines, etc.How to Use:1. The mechanical sliding table is a general component that completes the feed movement. The complete mechanical sliding table is composed of the sliding table part and its moving common parts, the complete mechanical sliding table part and other moving device brakes and other auxiliary parts. According to the process requirements of the machined parts, a drive unit (with multi-axis box) drilling head, boring head, milling head, boring head, turning head, etc. are installed on it to form various combined machine tools to complete drilling and expansion. , Reaming, scraping end face, chamfering, turning end face, milling, drilling and tapping, etc. Deep hole processing can be completed by configuring a graded feed mechanism on the sliding table (the graded feed mechanism is only used for specifications below HJ32)2. The sliding table can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined combined machine tool.

• Accurate Dovetail Guide Rail - This manual trimming platform features a dovetail groove rail system that ensures very smooth and consistent movement with 0.01mm minimum scale accuracy. Ideal for sensitive optical and measuring tasks requiring exact positioning.
• Robust Aluminum Alloy Build - Crafted from black anodized aluminum alloy, the trimming platform is both lightweight and exceptionally sturdy. It withstands friction, scratches, drops, and degradation for extended use in labs and workshops.
• Fine-Tune Gear Control - The manual gear rotation handle allows for precise, quiet adjustments without noise. This fine-tuning capability is essential for applications like semiconductor manufacturing, microscope alignment, and photographic equipment calibration.
• High Load Capacity & R-Angle Protection - With a 49N (5Kgf) load capacity, this stage maintains consistent functioning under weight. The R-angle protection design safeguards the body from external forces, enhancing practicality and dependability for testing machines.
• Multi-Scene Versatility - This XZ axis sliding stage is compatible with a wide range of equipment, including handling machines, processing tools, and printing machines. Its detachable structure and 10 threaded holes (4mm diameter) offer flexible mounting options.
