X-BULL Electric Winch 12V 3000LBS Synthetic Rope for Towing ATV/UTV Boat Winch Off-Road with Wireless Remote Control
4.9 (146 items)
Limited Time Sale$71.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 230364395 | Release Date | 2026/06/18 | List Price | $47.96 | Model Number | 230364395 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

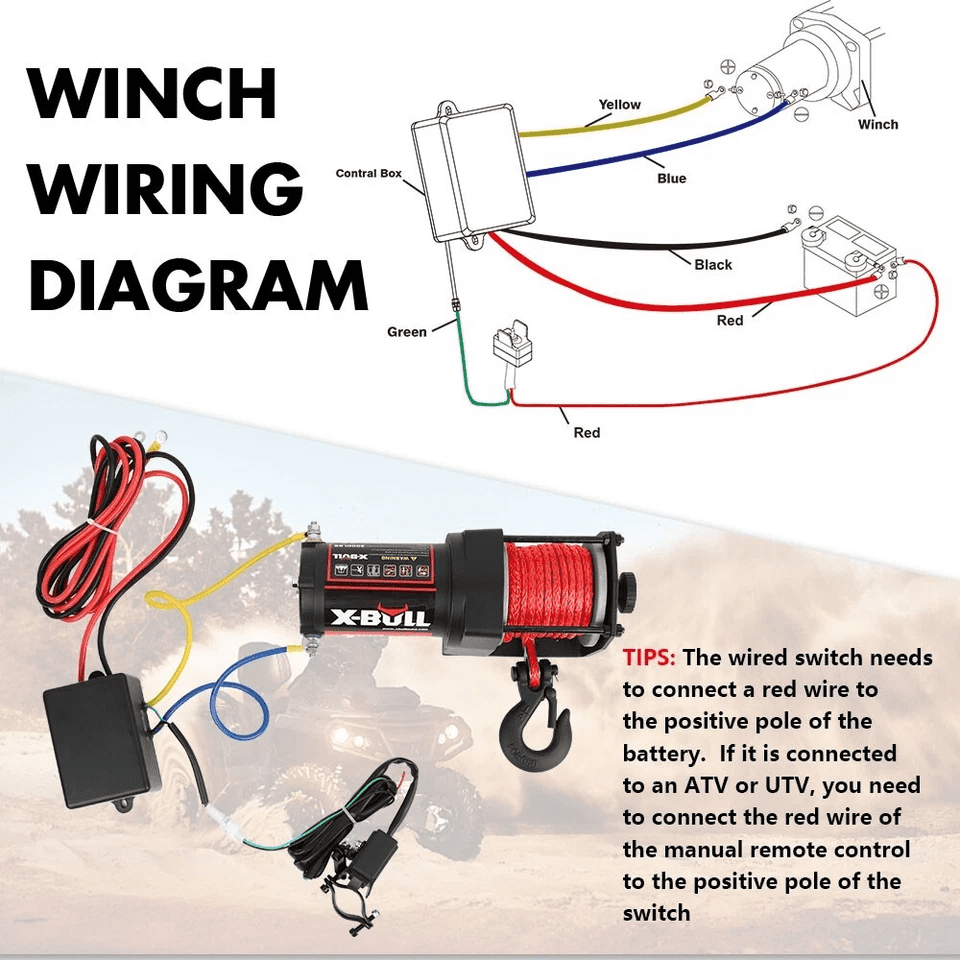

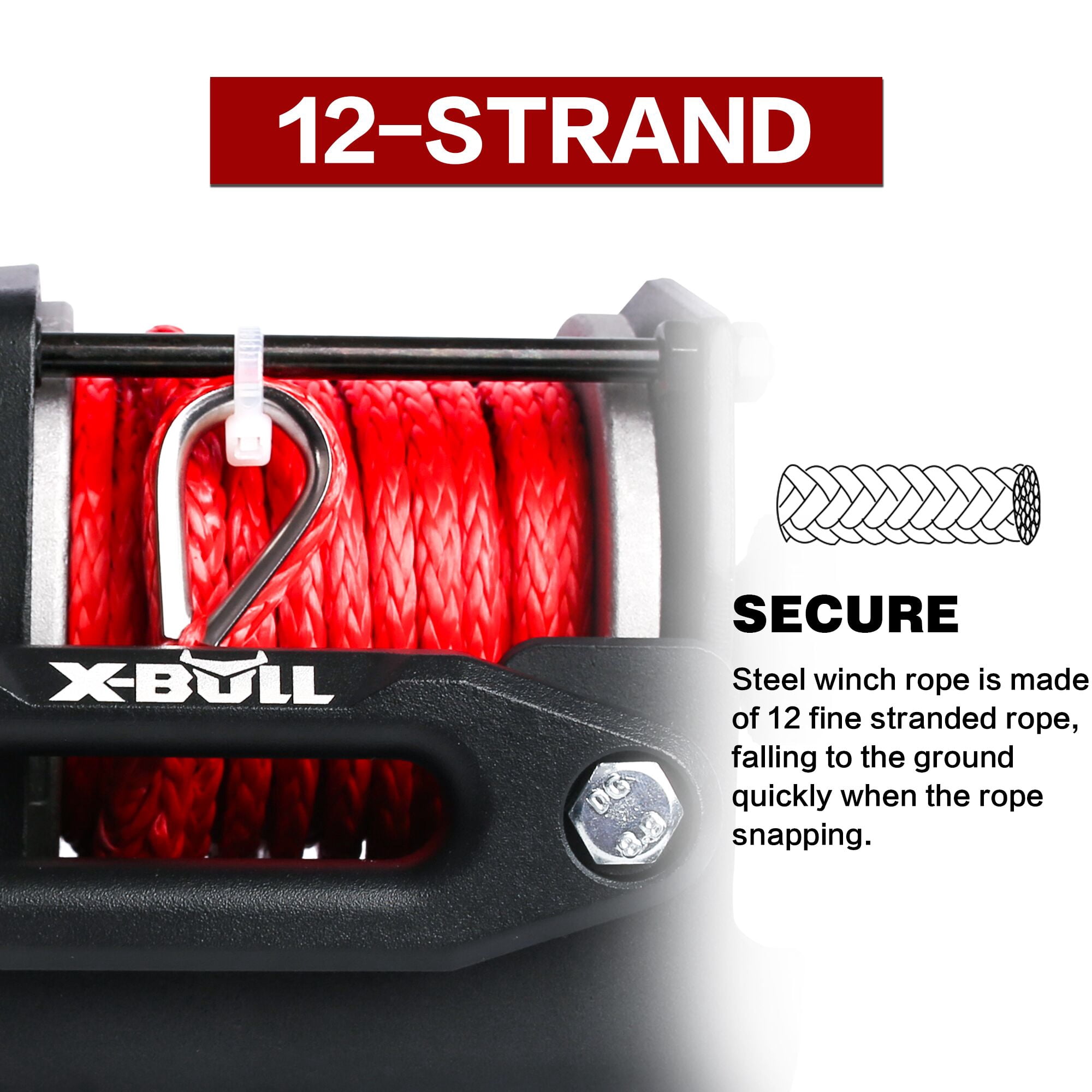

· With a pull force of more than 3000lbs, this electric winch delivers a 1.0kw/ 1.3HP 210 amp 12V DC permanent magnet motor with a 153:1 planetary gear system with a fully loaded line speed of 3.3 ft/min and a load free line speed of 1.3 ft/min. · Waterproof powder coated surface, resistant to corrosion. Durable 3/16" x 32' synthetic winch rope with high tensile properties is sufficient for any outdoor traction operation. · Each lead wire is connected to the corresponding position, the connection is clear, the connection is very convenient and fast; 12.63-inch (approx. 32.0 cm) blue (-) and yellow (+) wires are connected to the motor; 68.75 inches (about 172.0 cm) Red (+) wire and black (-) wire Connect to battery (All wires: No. 6). · The winch will include an 18.5 x 13 cm (L x W) universal mounting plate for mounting on the rear of the machine, which will need to be modified to fit with each particular machine, as well as a wireless remote control for the 9.8-11.6 m range, a 1.2 m handlebar rocker, and a 0.6 cm U Hook, chain fly bar,8.0 cm mounting bolt pattern. · We use the planetary gear system, which can automatically brake, while we want to achieve the highest speed and a certain guarantee to provide safe and reliable power in any situation.
- Rated Single Line Pull: 3000lb.(1360kg)
- Duty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest)

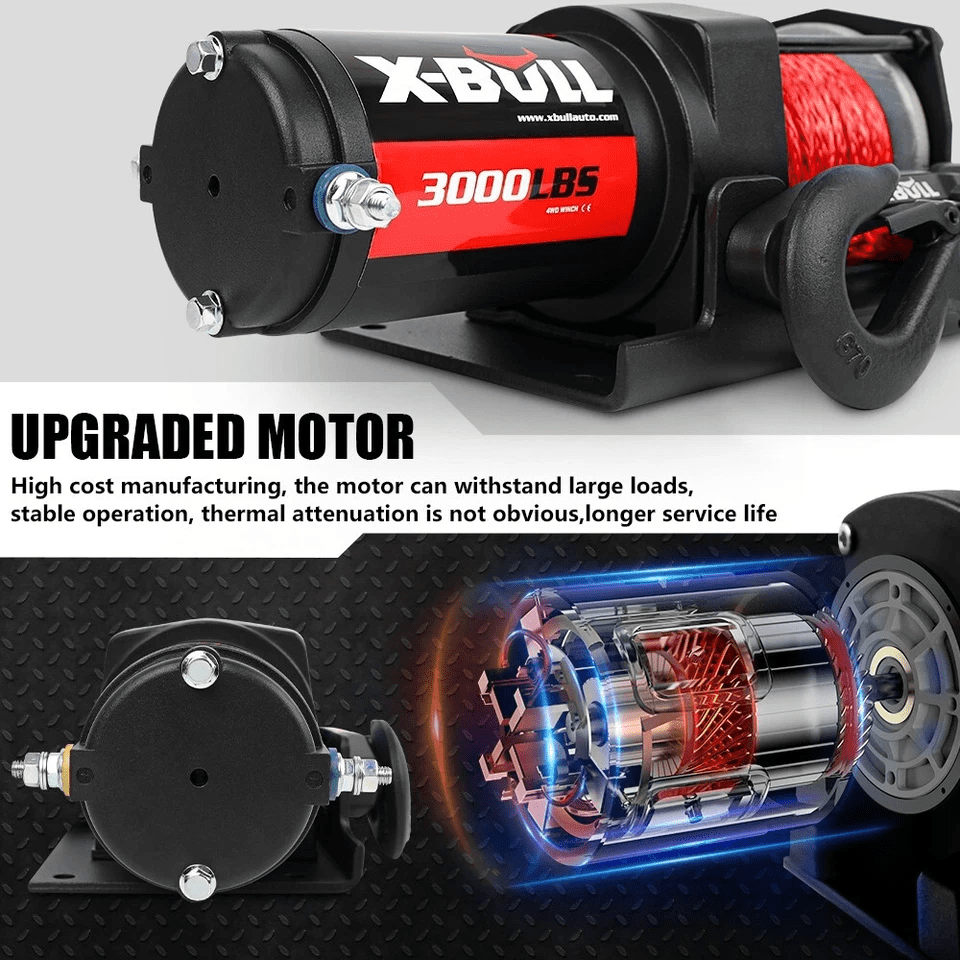

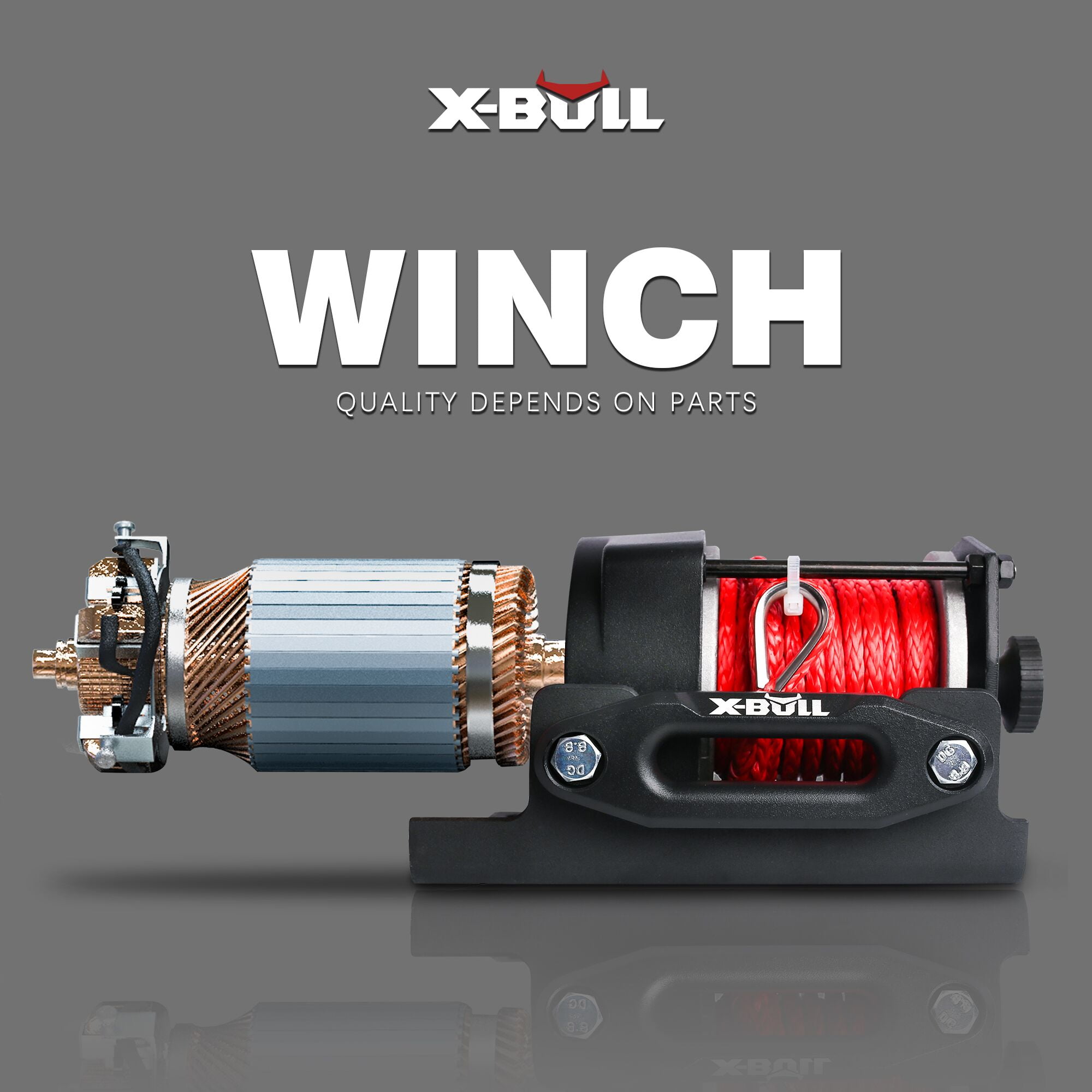

- Motor:12VDC 1.3 HP Permanent Magnet
- Gear train: 3-Stage Planetary

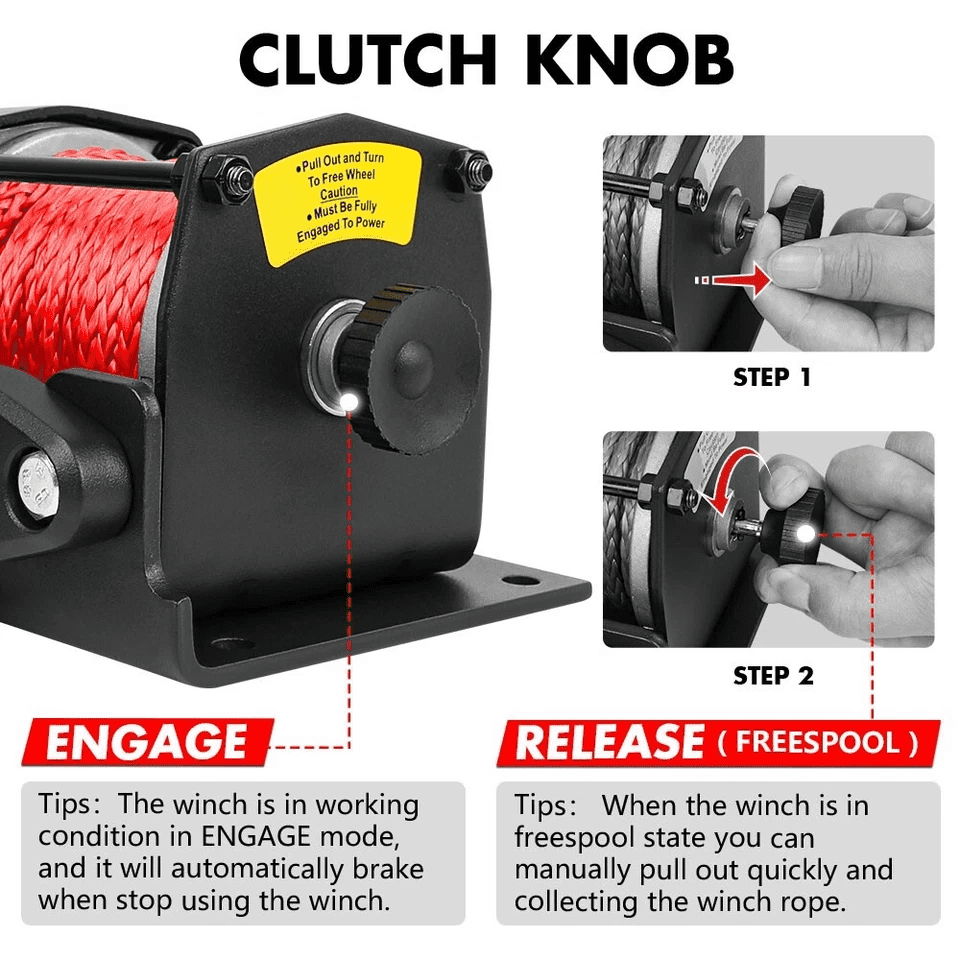

- Frees-pool: Cam Activated
- Brake: Auto. Load Holding Mechanical
- Battery: 12VDC, Minimum 12Ah
- IP Rating: IP 67
- Weight:15lb.(6.8kg.)
- Rope Size:(Ø4.8mm X 9.2m)

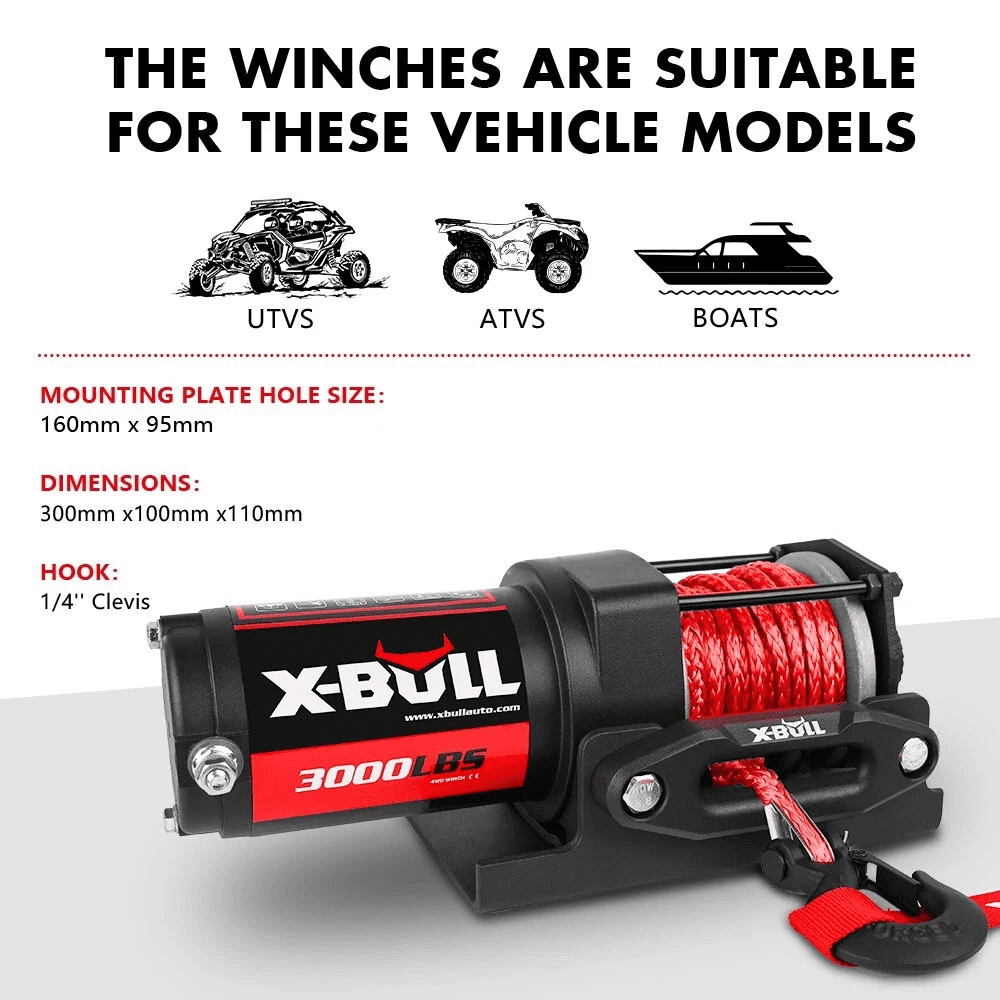

- Application: ATV/UTV/BOAT

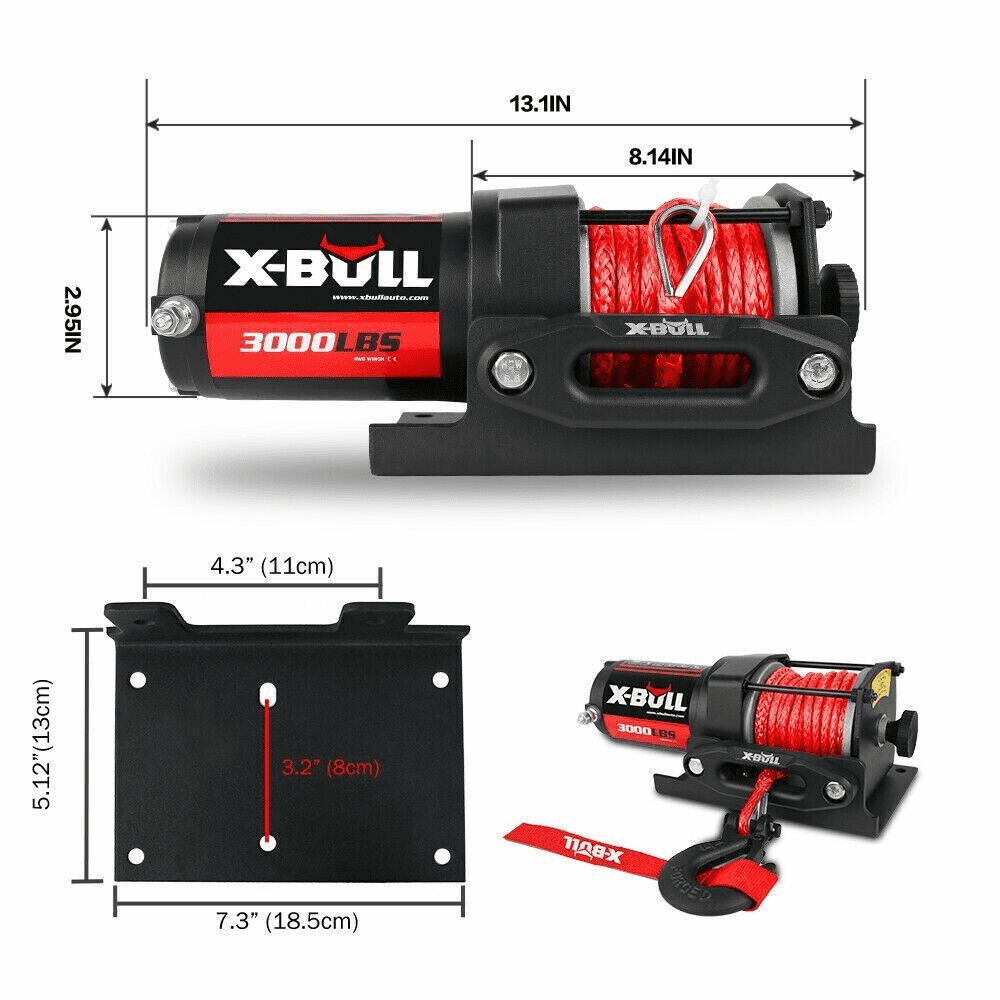

- Overall Dimensions(LXDXH):11.4''X3.9''×4.3'' (290 X 100 X 110mm)

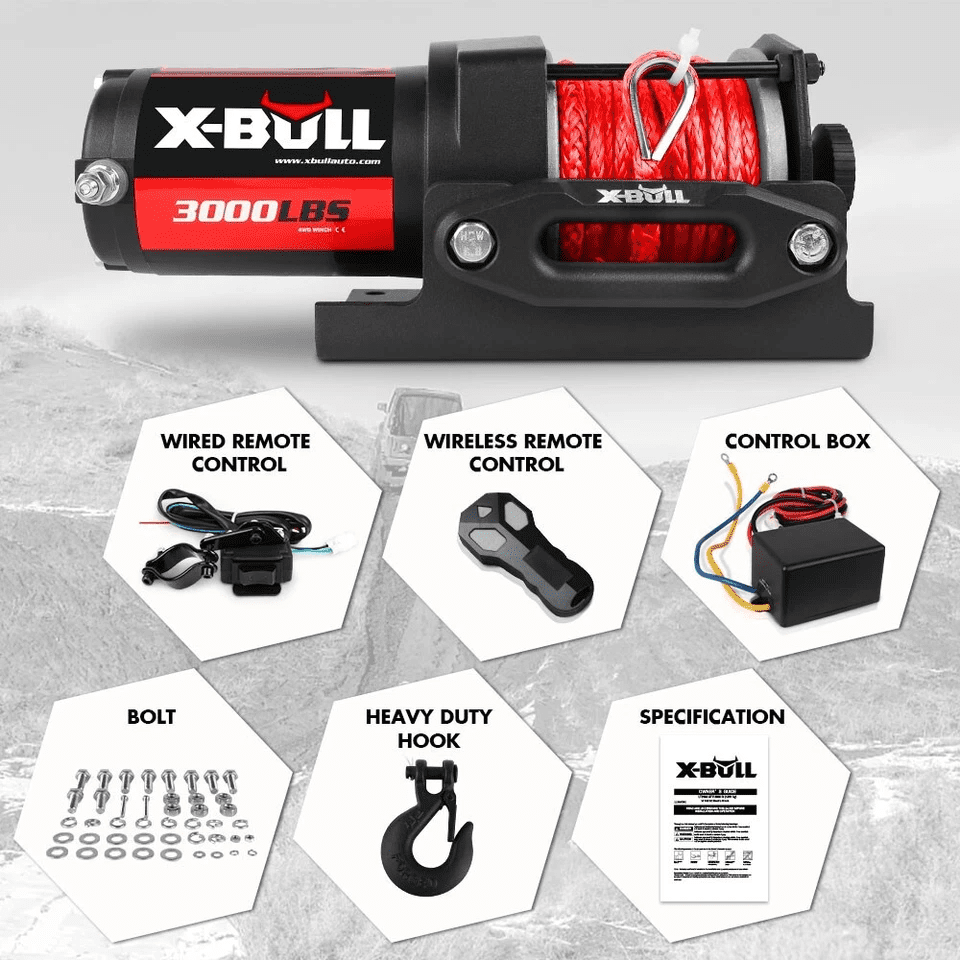

- 1 X 3000 LBS Winch
- 1 X Winch Mounting Plate
- 1 X Wire Remote Control
- 1 X Wireless Remote Control
- 1 X Aluminium Hawse Fairlead
- 1 X Controller (Solenoid + Receiver)
- 4 X Solenoid Cables
- 1 X Clevis Hook
- 1 X Set of Bolts
- 1 X User Manual
| Pull capacity | 3000 lb |
|---|---|
| Winch cable material | Synthetic |
| Cable length | 32' |
| Features | Waterproof |
| Horsepower | 1.3 HP |
| Towing winch type | Electric |
| Vehicle type | All-Terrain Vehicle, Utility Task Vehicle, Boat |
| Power type | Battery |
| Accessories | Wireless remote control, 1.2 m handlebar rocker, and a 0.6 cm U Hook, chain fly bar, 8.0 cm mounting bolt pattern |
| Material | Stainless Steel |
| Brand | X-BULL |
| Assembled product weight | 12.96 lb |
| Volts | 12 V |
| Vehicle fitment type | Universal |
| Has written warranty | No |
