Trend Digital Depth Gauge with 2 23/64 inch Jaw Opening for Precision Rebate and Groove Setting, GAUGE/D60

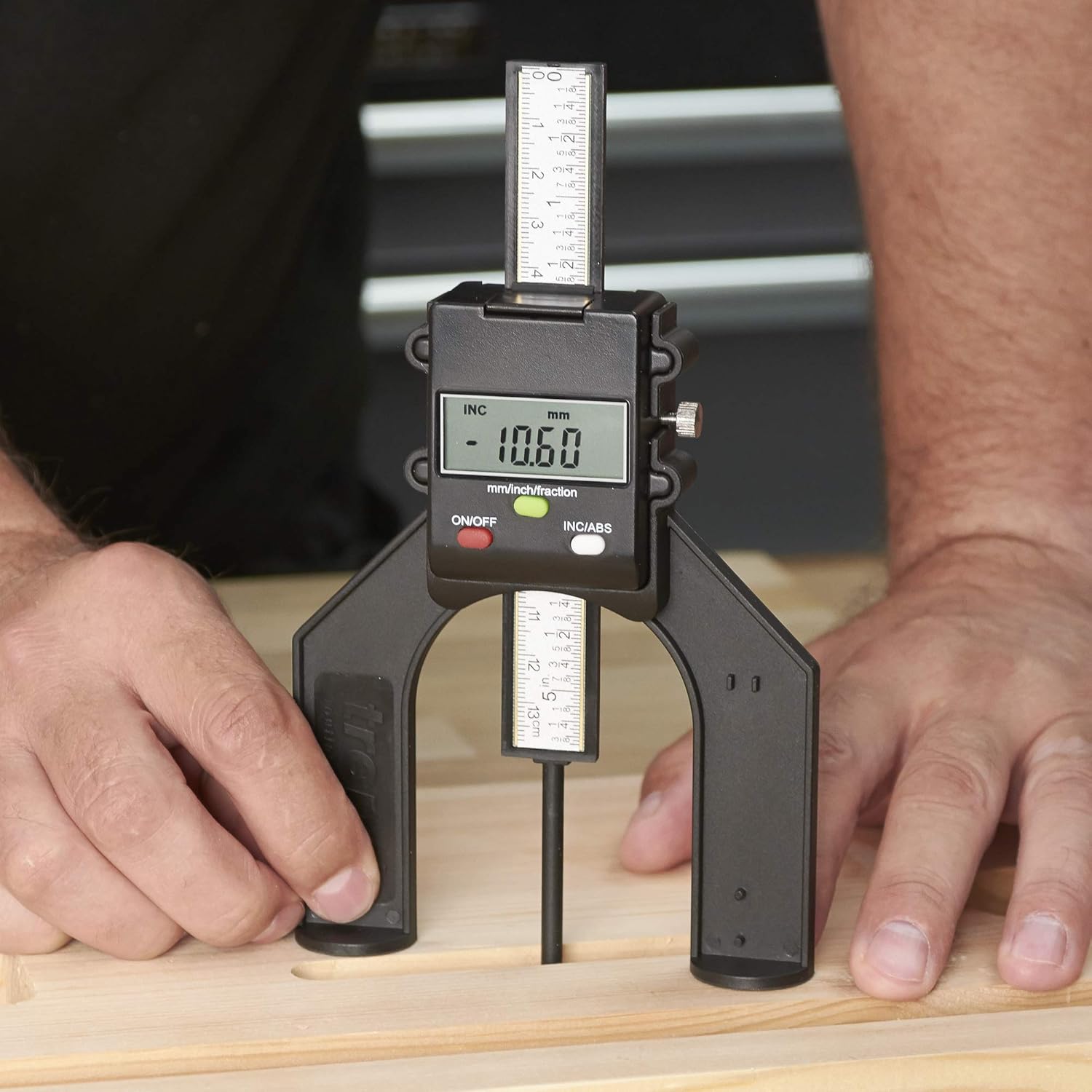

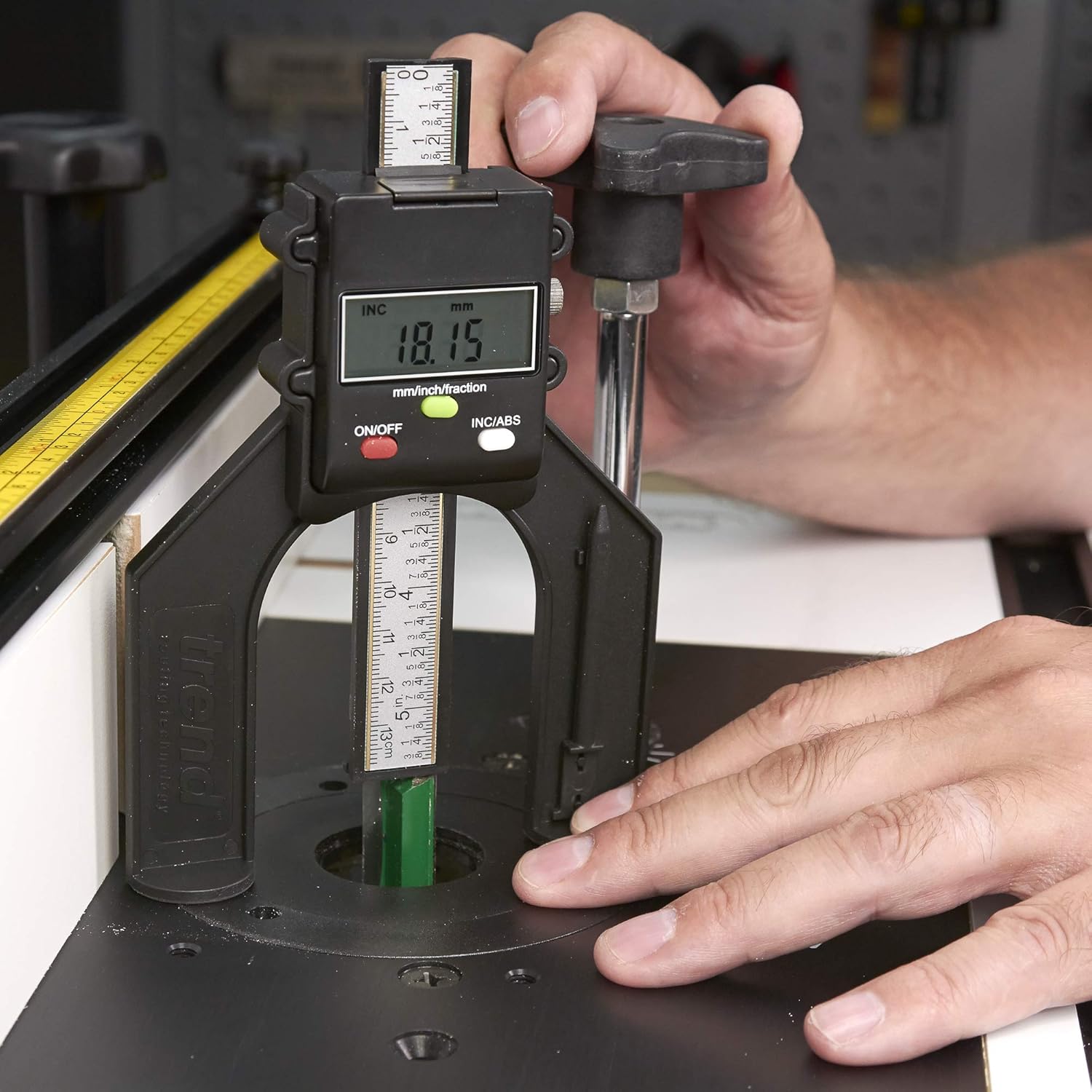

With a maximum measuring range of 80mm, the Trend GAUGE/D60 is perfect for setting rebates and grooves quickly and accurately on router tables, setting both the height and backset of the cutter. This construction tool accessory can also be used to check preset heights and positions for all sorts of projects on the job site or the home shop. The multi-functionality of this measuring tool is ideal for checking and transferring, setting up, marking and measuring heights, depths and backsets, the 'go to' aid for the router or tablesaw and beyond.

• WIDE APERTURE: The Trend Digital Depth Gauge features a 2 23/64 inch wide aperture to span fence cheeks and bigger router base openings for a variety of woodworking projects.
• ACCURATE DIGITAL READOUT: This depth gauge is accurate to 0.003 inch with readout registering in 0.002 inch increments, allowing for precision setting of rebates and grooves on router tables.
• MAGNETIC FEET: The magnetic feet hold it to metal surfaces, freeing your hands for adjustments and setting up. The locking option can secure any measurements that needs to be transferred.
• SIMPLE YET CLEVER POINTER: The depth gauge features a simple pointer that can be clipped to the ruler to accurately check any holes, mortices, or slots up to 2 inches deep.
• MAXIMUM MEASURING RANGE: The maximum measuring range of 3 5/32 inches makes this depth gauge perfect for setting rebates and grooves on router tables for height and backset of the cutter with meticulous accuracy.
