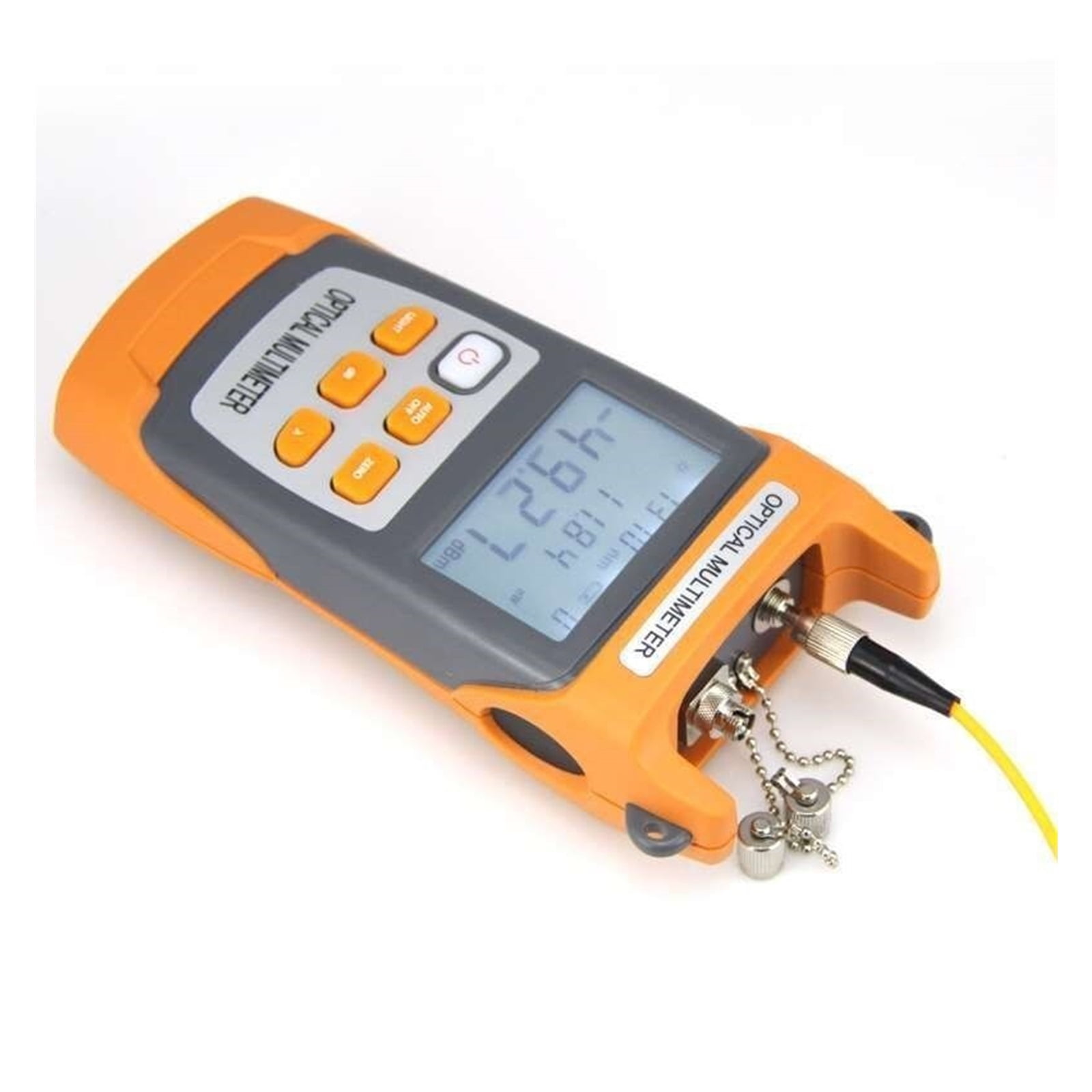

Handheld -70~+10dBm Fiber Optic Power Meter 5/10MW VFL Fiber Visual Fault Locator Power Meter Multimeter

<p>Ensure the integrity and performance of your optical networks with our professional-grade fiber optic tester collection. Precision-engineered for network technicians and telecommunications specialists, these tools are essential for measuring signal strength, detecting cable faults, and verifying splice quality. Whether you need a standard power meter for routine loss testing, a high-accuracy light meter for source verification, or an advanced OTDR fiber optic tester for comprehensive link characterization, our devices provide the reliable data required for mission-critical infrastructure. </p><p> </p><p>Featuring high-resolution color displays and intuitive interfaces, our fiber testers are designed for both laboratory accuracy and rugged field use. With capabilities ranging from simple continuity checks to deep-root cause analysis of fiber breaks and macro-bends, our instruments help you minimize network downtime and maximize transmission efficiency. Built to last and easy to operate, these testers are the definitive choice for maintaining high-speed fiber optic systems.</p><p>Model</p><p>Parameter</p><p>Powe Meter VFL</p><p>PoweMeter VFL</p><p>Optical Power Meter</p><p>Calibration Wavelength (nm)</p><p>850,1300, 1310,1490,1550,1625</p><p>Measurement Range(dBm)</p><p>-70~+6</p><p>-50~+26</p><p>Resolution (dB)</p><p>0.01</p><p>Uncertainty (dB)</p><p>±0.25</p><p>Linearity (dB)</p><p>±0.1</p><p>Frequency Identification Range</p><p>&lt;10K</p><p>Connector</p><p>FC/SC/ST</p><p>Light Source</p><p>Wavelength (nm)</p><p>1310/1550(optional others)/1490</p><p>Output power (dBm)</p><p>-5(optional others)</p><p>Connector</p><p>FC/SC/ST</p><p>Stability (dB,30min,20)</p><p>0.1dB</p><p>Modulation (Hz)</p><p>270 1K,2K</p><p>Visual Fault Locator</p><p>Wavelength(nm)</p><p>650+-10nm</p><p>Output Power</p><p>5mw 10mw</p><p>Connector</p><p>FC/PC</p><p>General Information</p><p>Power Supply</p><p>3*AA 1.5V battery / MiniUSB 5V power adapter</p><p>Auto-Off Time</p><p>10 mins</p><p>Working Time1(h)</p><p>50(with OLS working),200(without OLS working)</p><p>Communication Port</p><p>MiniUSB</p><p>Operating Temperature()</p><p>-10+60</p><p>Storage Temperature()</p><p>-25~+70</p><p>Dimension (mm)</p><p>175×90×44.5</p><p>Weight (g)</p><p>265</p>

• 1. Accurate Measurement: Our Fiber Optic Power Meter is equipped with a calibration wavelength range of 850, 1300, 1310, 1490, 1550, and 1625 nm, allowing for precise measurement of optical power within a range of -70 to +6 dBm. The high resolution of 0.01 dB ensures accurate readings, while the uncertainty of ±0.25 dB and linearity of ±0.1 dB guarantee reliable results.
• 2. Wide Compatibility: With versatile connector options including FC, SC, and ST, our Power Meter is compatible with various fiber optic cables, making it suitable for different applications and environments. The frequency identification range of less than 10K allows for quick and easy identification of frequencies, ensuring efficient troubleshooting.
• 3. Visual Fault Locator: As an added bonus, our Fiber Optic Power Meter also functions as a visual fault locator (VFL) with a wavelength of 650±10 nm. With output power options of 5mw and 10mw, it provides a visible red light for visualizing faults or breaks in fiber optic cables, facilitating efficient maintenance and repair.
• 4. Convenient and Portable: The auto-off feature saves battery life by automatically shutting off after 10 minutes of inactivity. Its compact dimensions of 175×90×44.5 mm and lightweight design of 265 g make it highly portable and easy to carry around.
• 5. Reliable Performance: Our Fiber Optic Power Meter exhibits excellent stability, with a deviation of only 0.1 dB over a 30-minute period. The operating temperature range of -10°C to +60°C ensures reliable performance even in challenging conditions, while the storage temperature range of -25°C to +70°C allows for safe storage when not in use. Built with durability in mind, this power meter is designed to withstand rigorous use and provide long-lasting reliability.
