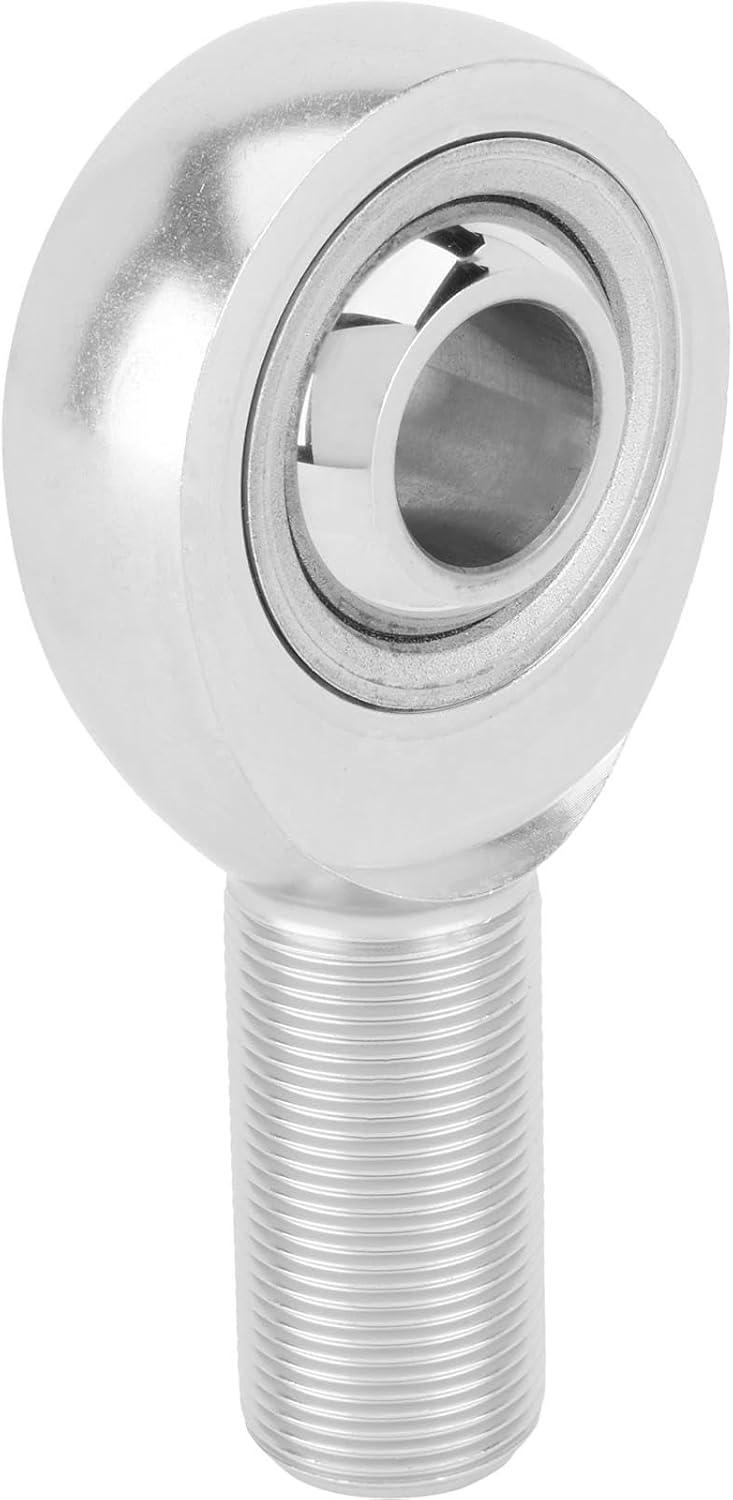

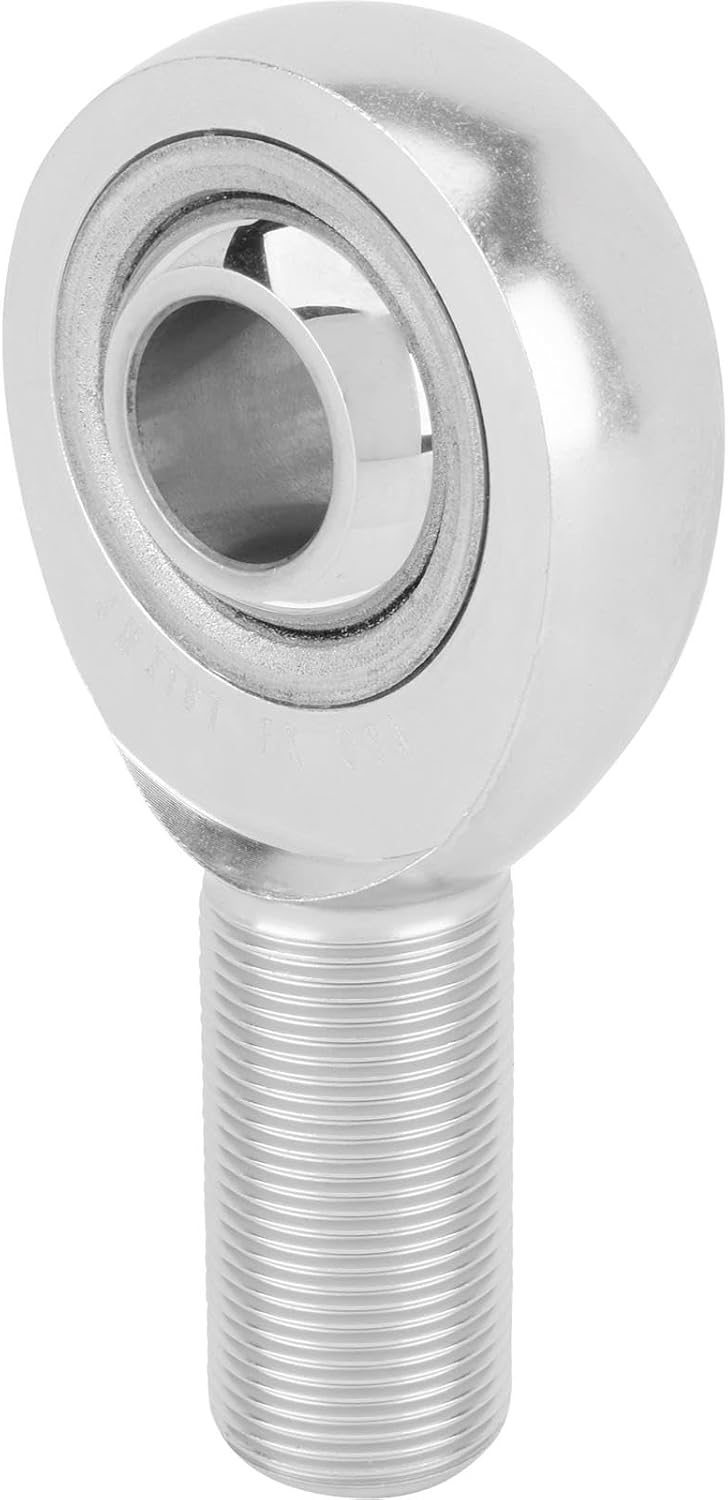

FKB JMX16T 3-PIECE PRECISION-HIGH STRENGTH ALLOY MALE ROD END

FK Rod Ends offers this three piece male rod end. The ball is made of 52100 steel that is hard chrome plated. The body is made of alloy steel and is zinc plated. The race is heat treated steel alloy that has been zinc plated and chromate treated. Ball is 52100 steel Rc 56 min. Hard, and hard chrome plated. Body is alloy steel, heat treated, zinc plated. Race is alloy steel, heat treated, zinc plated, chromate treated. PTFE liner. 1-1/4"-12 thread pitch. 2.50" thread length. 1.00" inside diameter. 6.00" overall length. Choose Left Hand or Right Hand threads. Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications. Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

• The body is made from 52100 steel Rc 56 min. which is then hardened, and chrome plated
• Ball is alloy steel, heat treated, zinc plated
• Has a 2.50" thread length and a 6" overall length
• Available in left hand or right hand threads to better suit your application
• Ideal for clutch, brake, steering linkage, and suspension components on moderate horsepower applications
